Tehniline info:
Power Source: | USB Bus power, embedded AMR Active Noise Cancellation® technology |
Formats: | 44.1/48/88.2/96/176.4/192kHz PCM 2.8/3.1/5.6/6.2/11.2/12.4MHz DSD 352/384kHz DXD |
DAC System: | Bit-Perfect DSD & DXD DAC by Burr Brown (1-DAC Chip; 2-Channel; 4-Signals) |
PCM: | Measure/Listen digital (selectable) |
DSD: | Measure/Listen analogue (selectable) |
DXD: | Bit-Perfect Processing, fixed filter |

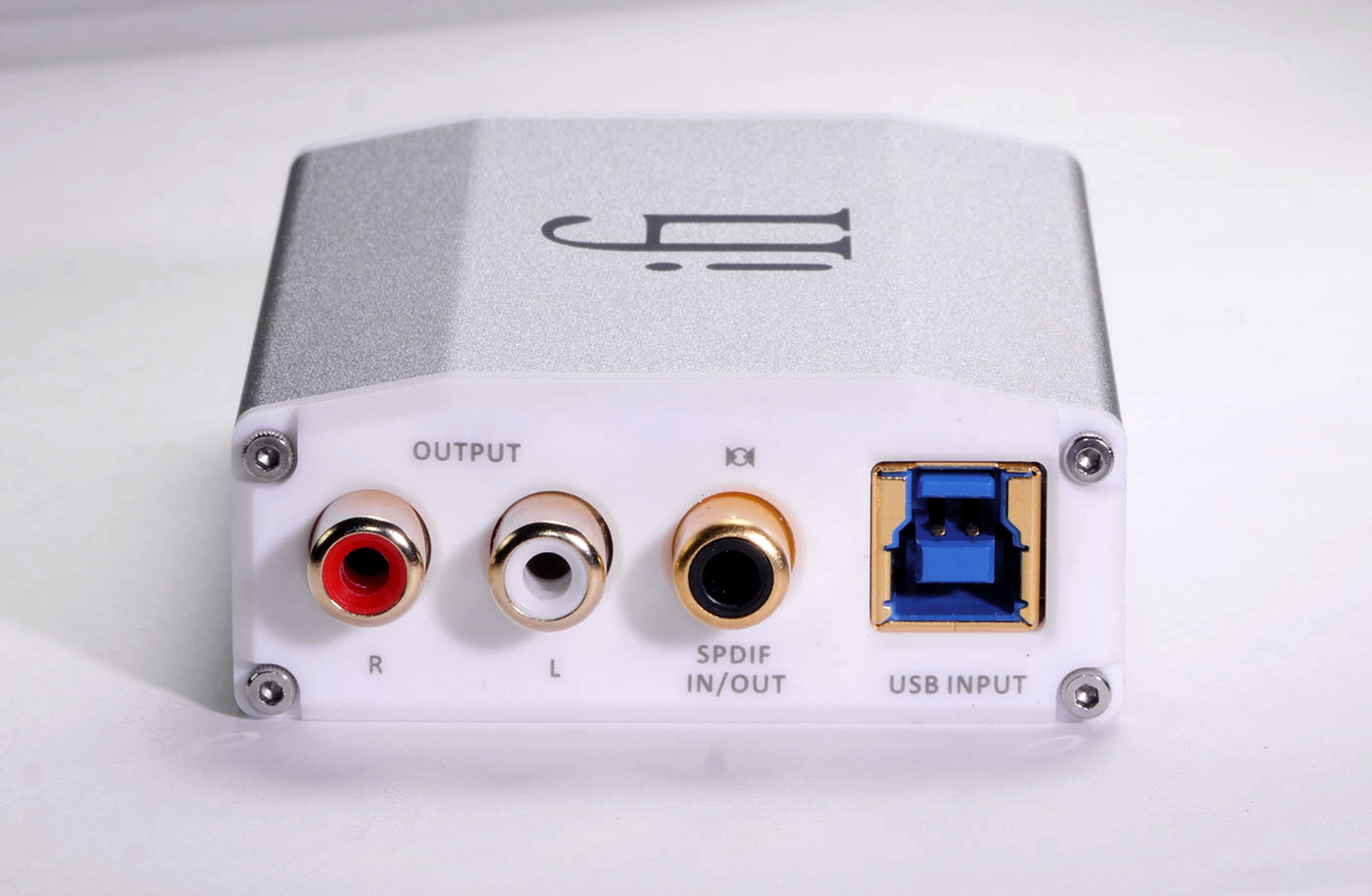

Input: | USB 3.0 compatible with USB 2.0, Bluetooth (TM) with aptX & AAC support Codec, S/PDIF RCA & Optical Combo |
Output: | Coaxial S/PDIF for USB/Bluetooth (PCM up to192kHz) Audio RCA L/R |
Frequency Response: | 20Hz – 20kHz <+0/-0.5dB (44.1kHz SR, Measure Filter) 1Hz – 44khz <+0/-3.0dB (>= 88.2kHz SR, Measure Filter) |
Output Voltage @ 0dBFS: | 2.05V (+/-0.05V) |
Dynamic Range: | 109dB (A) |
Signal/Noise ratio: | 109dB (A) @ 0dBFS |
THD & N @ 0dBFS: | < 0.0015% 10k Load |
Output Impedance: | < 50Ω |
Power Consumption: | < 2.5W |
Dimensions: | 100 (l) x 64 (w) x 25.5 (h) mm |
Weight: | 122g (0.27lbs) |
