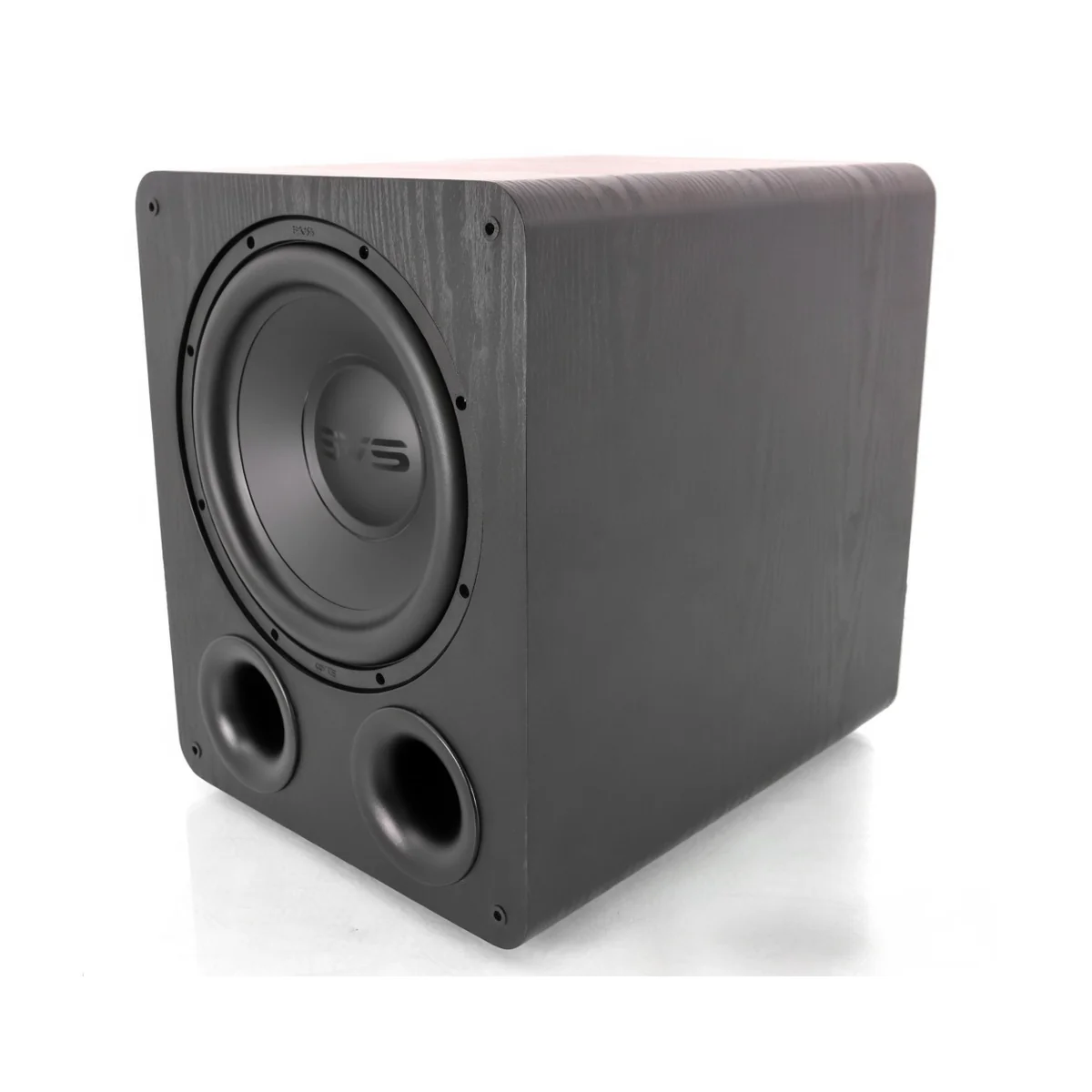

SVS PB-1000 PRO subwoofer

€845.00

Pane oma kodukinosüsteem SVS PB-1000 Pro subwoofriga tõeliselt müdisema!

Täielik bassiesituse kontroll ja täpsus, mis läheb välja nii madalatele sagedustele, et inimkõrv pole seda enam suuteline eristama.

PB-1000 teeb vaieldamatult tuule alla kõikidele teistele samasse hinnaklassi jäävatele kodukino-subwoofritele.

12 tolline SVS element
võimsus: 325+ w RMS, 820+ w (tippvõimsus)
sagedusvahemik: 17-260 Hz +/- 3 dB
D-klassi Sledge võimendi koos MOSFET väljundtransistoritega
kaks esiküljel asetsevat bass-reflex ava
nutitelefoni rakendus võimaldab mugavalt seadistada ja juhtida subwoofrit ( nt muuda lõikesagedusi, EQ parameetreid, polaarsust jms)
Mõõdud (cm, ilma katteta)(K x L x S): 47,9 x 38 x 48,8
kaal: 19,3 kg

Lisainfot vaata tootja kodulehelt

1 laos

Sagedusreaktsioon / Akustilised andmed:

* Frequency response graph does not denote maximum output capability

17-260 Hz +/- 3 dB (standard režiim)
19-260 Hz +/- 3 dB (suletud portidega)
Väikestes ja keskmistes ruumides saab arvestada 2-3 Hz madalama bassilaiendusega
2-meetri ulatuses tasuks peegeldavatest pindadest eemale asetada (quasi-anechoic).
Filtri “Roll-off slope” on spetsiaalselt ruumi suurusega kohandamiseks optimeeritud

Dimensions (w/ grille): 18.9” (479mm) H X 15” (380mm) W X 20” (509mm) D
Dimensions (without grille): 18.9” (479mm) H X 15” (380mm) W X 19.2” (488mm) D
Shipped Dimensions: 23.4” (594mm) H 19.9” (506mm) W X 24.4” (619mm) D
Weight (unboxed): 42.5lbs (19.3kg) with Grille
Shipped Weight: 51.6lbs (23.4kg)

All-new proprietary 12-inch long-throw driver with high-precision tuned overhung motor configuration.
9.26lb (4.2kg) pound Woofer with 6.91lb (3.14kg) pounds motor
13.1mm Xmax, 26.8mm Xmech precision aligned excursion
1.5” diameter Voice Coil with high current 6-layer high-purity copper wire windings
Premium high-purity copper voice coil winding design minimizes distortion and power compression with maximum heat dissipation, linearity, and tuned magnetics for high excursion
Two-piece high grade oversized Y35 Ferrite magnet motor
High Temperature 3003-H18 aluminum former/bobbing
6” composite cotton-poly extreme excursion linear spider

Dual 24-strand copper-alloy high-temperature leads
Proprietary injection molded gasket and NBR extreme-excursion surround
Lightweight treated Fiber Composite cone for enhanced sensitivity and transient response
Top plate assembly with low carbon 1010 steel for optimal magnetics
Oversized low carbon 1008 steel T-yoke with integrated pole piece extension for maximum cooling and electromagnetics
12” premium powder coated basket with FEA optimized analysis for maximum rigidity, tensile strength, and energy transference
Oversized motor system for driving full excursion and industry best SPL, with pinpoint transient speed
Precision machining for motor and narrow tolerance suspension parts ensure flawless linearity at full range of excursion

325 watts RMS, 820+ watts peak power output Class D design
50Mhz Analog Devices Audio DSP, high resolution double precision 56bit filtering
Wide input voltage bandwidth compliant for consumer and pro audio up to 4V line level input.
High efficiency LLC resonant SMPS with 17A 650V MOSFET, resonant switching results in lower EMI and highest efficiency.
Cool-running Class D amplifier switching topology with massive 34A 120V MOSFET’s
SVS BLE control app for iOS and Android contains 3 complete name-able and customizable User presets, supports IOS (iphone5 or newer or Android (4.42 or newer), 3 PEQ’s per preset, adjustable low pass, phase, polarity, room gain compensation, and control for best alignment with speakers.
Customer EQ and DSP limiter settings specifically for the 1000 Pro
Input impedance 16kohm (unbalance RCA)
Input impedance 20kohm (speaker level)

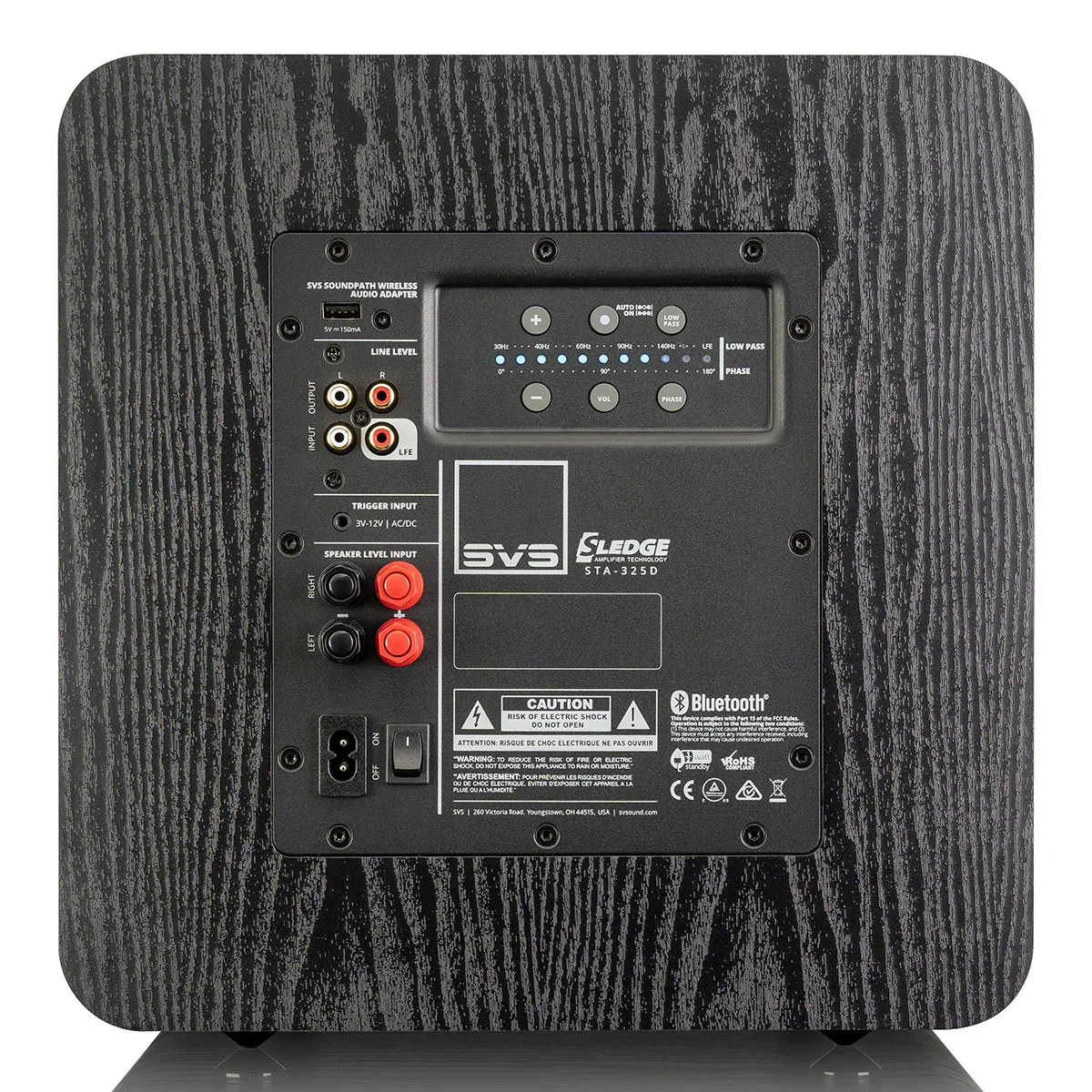

New Intelligent Feature control (IFC) user interface on the amplifier with bright blue 11 LED bar display and easy push-button controls.

Bluetooth controlled subwoofer DSP smartphone app works with iOS, Android and Amazon operating systems.
Easiest and most convenient way to adjust crossover frequencies, parametric EQ, polarity, room gain and all other bass management functions.
Three convenient custom presets allow for perfect tuning in any room or system, from your favorite seat.
Unique bidirectional feedback shows adjustments in real time on both app and subwoofer interface.
Easy-to-follow tutorial provides clear guidance for all functions.
